Cabinets
We supply the highest quality cabinets by McCain (caltrans), Henke (NEMA), and Orange Traffic for all of your traffic needs.
Solutions

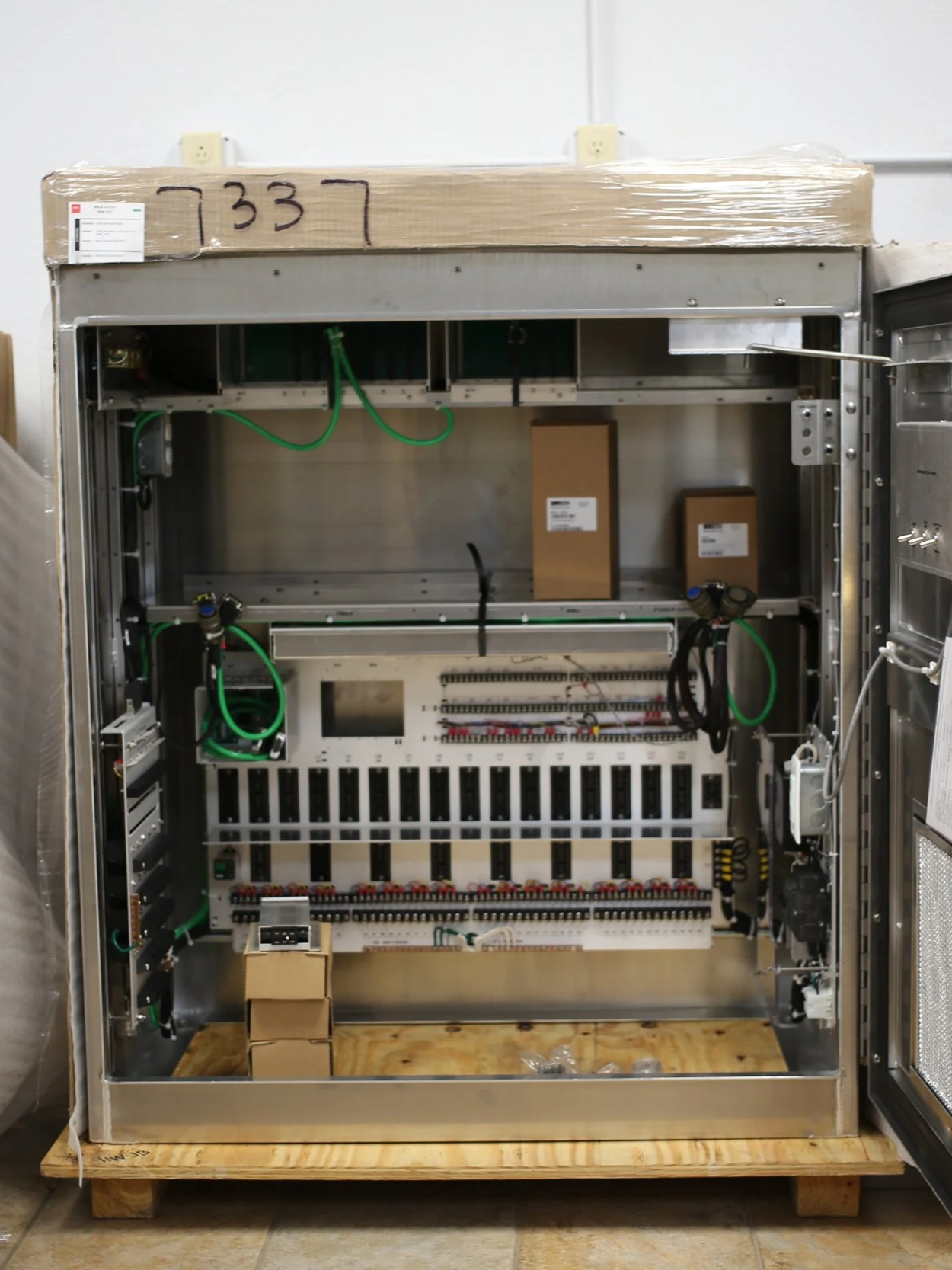

TS-2 Cabinet
Cabinet Benefits:
Safeguard against accidental shock from inadvertent contact with high voltages
Comply with leading standards on electrical safety including, NEC and NFPA 70E
Detect a dark approach for increased driver safety
Monitor FTR and flasher continuously to ensure operability
Upgrade existing installations - matches 332 Caltrans and ITS 342 cabinet footprints
Connected vehicle ready

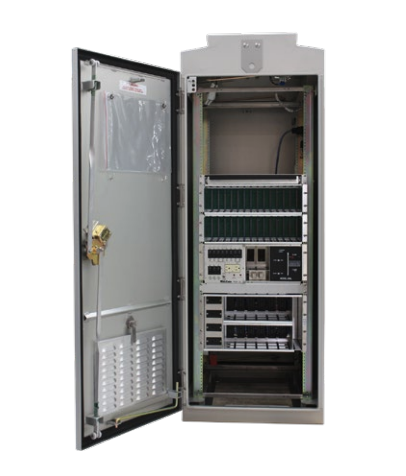

332L Controller Cabinet
Cabinet Features:
Constructed of 0.125” thick 2052 aluminum with continuosly welded external seams
Four vertical C channels on each side wall for mounting panels, shelves, etc.
Supplied with two 11” deep adjustable shelves
Includes pull-out storage drawer mounted under top shelf
Provisions for two exhaust fans
Flanged door with multi-position door stop
Two bolt-on lifting eyes on top of cabinet
352i ATC Cabinet
Cabinet Features:
Rugged and dependable industry standard cabinet
Standard assemblies assure interchangeability between manufacturers
Full size doors (front and back) provide easy access to the cabinet’s large interior
Three-point latching system with industry standard locks for maximum security
Available anti-graffiti coating reduces the effects of vandalism

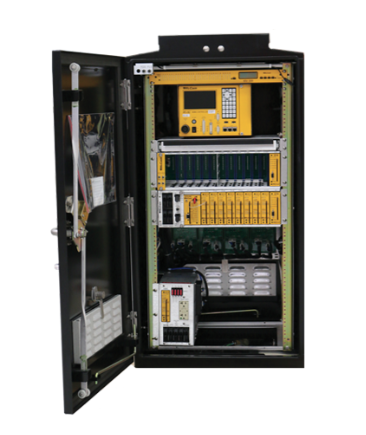

356i ATC Cabinet
Cabinet Benefits:
Safeguard against accidental shock from inadvertent contact with high voltages
Comply with leading standards on electrical safety, including NEC and NFPA 70E
Detect a dark approach for increased driver safety
Monitor FTR and flasher continuously to ensure operability
Upgrade existing installations - matches 336 Caltrans and ITS 346 cabinet footprint
Connected vehicle ready
ATC 352 Cabinet
Modular design for easy maintenance
Up to 120 output & 32 input channels
Flasher monitoring to prevent dark approach
Includes additional accessory connection inputs
Voltage and current monitoring for efficient lamp fail detection
True LED compatibility
Cabinet Benefits:
