Traffic Hardware
Signal Mounts
Arm kits are supplied with factory installed studs to eliminate cross threading.
Unique foam rod tube seal provides a cold weather friendly push in design.

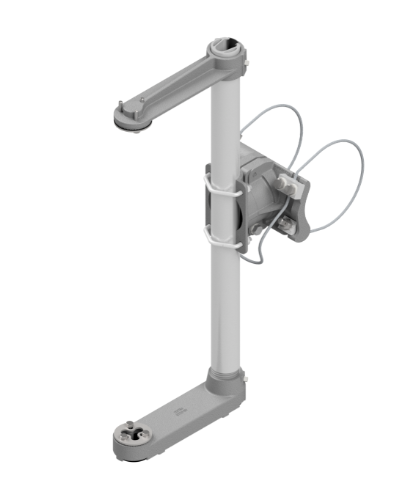

In-Line Signal Head Bracket Package
Stainless steel band attachment system
Yellow dichromate plated steel hardware
3 lower and 1 upper stud attach light heads
Multiple tube length selections for different head sizes
Multiple band lengths to accommodate 2″-17″ masts
Includes: Clamp kit, Arm kit, and Tube kit
Supplied in natural Aluminum finish
Tri-Stud Signal Bracket Package
Available in stainless steel band or plated steel cable attachment system
Yellow dichromate plated steel hardware
3 studs per arm to attach light heads
Multiple tube length selections for different head sizes
Multiple band lengths to accommodate 2″-17″ masts
Includes: Clamp kit, Arm kit, and Tube kit
Part #:
Supplied in natural Aluminum finish
Ask about band options! We offer the full line of Sky Bracket.

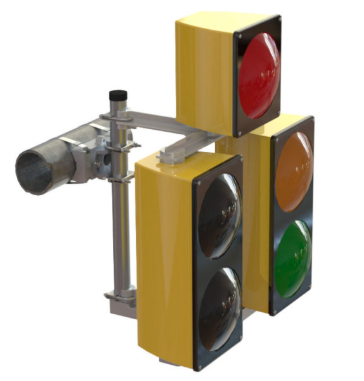

Cluster Signal Head Bracket Package
Available in stainless steel band or galvanized steel cable attachment system
Stainless steel hardware, or plated steel hardware
3 lower and 3 upper stud attach light heads
Multiple tube length selections for different head sizes
Multiple band lengths to accommodate 2″-17″ masts
Includes: Clamp kit, Arm kit, and Tube kit
Part #:
Ask about band options! We offer the full line of Sky Bracket.

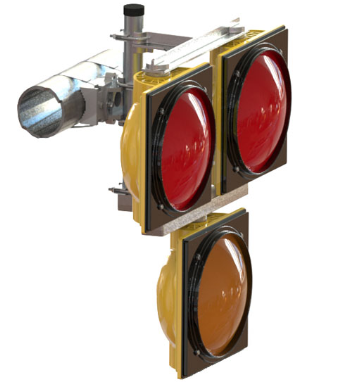

HAWK Ped Beacon Mount Package
Stainless steel band attachment system
Stainless steel hardware
3 lower and 3 upper stud attach light heads
Multiple band lengths to accommodate 2″-17″ masts
Includes: Clamp kit, Arm kit, and Tube kit
Part #: SS-SB29-HPB-18
Ask about band options! We offer the full line of Sky Bracket.

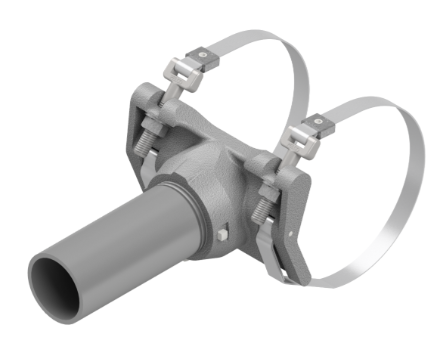

Band Mount Clamp Kits
These high tensile aluminum alloy clamp kits provide strength with maximum adjustability and complete clamping versatility.
They feature forged galvanized clamp screws which allow easy signal mounting on any size signal pole.
AB-3008 Astro-Brac Clamp Kit
T1 - Astro-Brac
Pelco’s Astro-Brac universal mounting systems are used for signs, cameras, sensors and virtually any size or combination of signals, to attaching mast arms and poles. The Astro-Brac is fitted with cables or bands and can rotate 360 degrees.

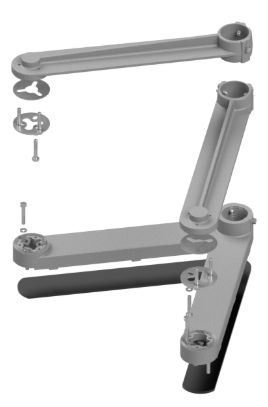

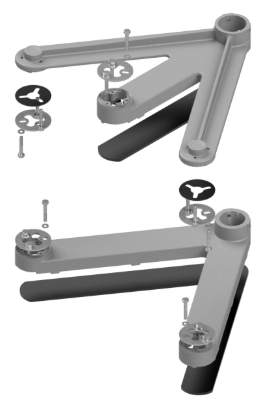

Cluster Astro-Brac Arm Kits

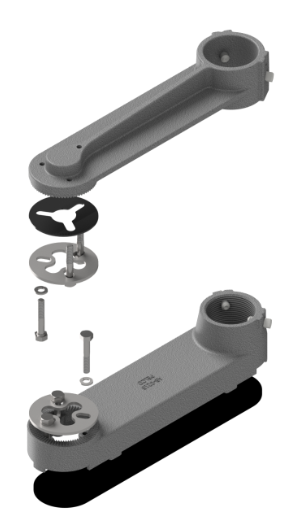

1-Way Astro-Brac Arm Kits
2-Way Astro-Brac Arm Kits
AS-0125 Astro-Brac
The Stellar Clamp Kit is a universal mounting component for traffic signal, camera, sensor, and sign assemblies. The Stellar Clamp Kit is easy to install and provides adjustability to properly support and position the complete assembly.
When properly installed the clamp kit will perform as follows:
The male to female connection has a minimum rotating moment of 400 ft-lb.
The clamp kit attached to a 4.5” diameter supporting structure has a minimum rotational moment of 400 ft-lb.
Camera Mounts
Many different design options to adapt to virtually any camera manufacturer.
All mounts are designed for simple, 1-man installation without the use of special tools or extra hands.

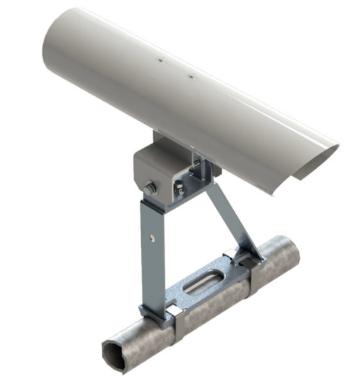

Standard Band Clamp Camera Mount Package
Stainless steel band attachment system
Yellow dichromate plated steel or stainless steel hardware options
Capable of horizontal or vertical mounting
Camera yoke accepts camera mounts with 4″ spread
Multiple band lengths to accommodate 2″-17″ masts
Includes: post mount weldment, camera yoke and hardware
Supplied in natural Aluminum finish
Part #: SB29-CM, SB42-CM, SB59-CM

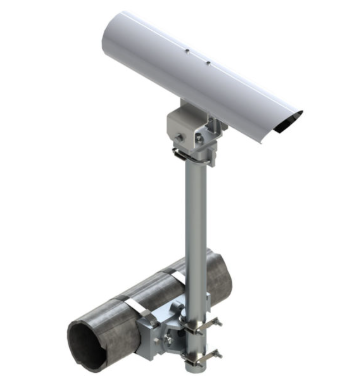

Adjustable Camera Mount Package
Stainless steel band clamp or cable clamp attachment system
Galvanized band clamp and cable clamp options
Stainless steel hardware
Camera yoke accepts camera mounts with 4″ spread
Multiple tube length selections for different camera heights
Multiple band lengths to accommodate 2″-17″ masts
Includes: Clamp kit, Tube kit, and Camera yoke
Supplied in natural Aluminum finish
Part #: SS-SB29-ACM-74, SS-SB42-ACM-74, SS-SB59-ACM-74
Ask about customizations! We offer the full line of Sky Bracket.

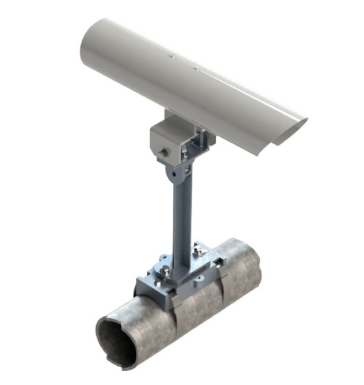

Rigid Camera Mount Package
Stainless steel band clamp or cable clamp attachment system
Galvanized band clamp and cable clamp options
Stainless steel hardware
Capable of horizontal or vertical mounting
Camera yoke accepts camera mounts with 4″ spread* Rigid 12″ stand off for solid support
Multiple band lengths to accommodate 2″-17″ masts
Includes: Clamp kit, Rigid stand off, and Camera yoke
Supplied in natural Aluminum finish
Part #: SS-SB29-RCM, SS-SB42-RCM, SS-SB59-RCM
Ask about customizations! We offer the full line of Sky Bracket.
Pendant Camera Mount
Stainless steel band clamp or cable clamp attachment system
Galvanized band clamp and cable clamp options
Stainless steel hardware
1 1/2″ NPT Camera Connection
Multiple band lengths to accommodate 2″-17″ masts
Includes: Clamp kit & Aluminum J-Pipe
Supplied in natural Aluminum finish
Part #: SS-SB29-RCM, SS-SB42-RCM, SS-SB59-RCM
Ask about customizations! We offer the full line of Sky Bracket.
Additional Hardware
Span Wire
1-Way Span Wire Framework for 3 or 4 Section Head w/Tether
Includes 12-001 Clamp, 12-002 Balance Adjuster, 12-040 Weatherhead, 12-065 Closure Cap
ECSPN: 13031

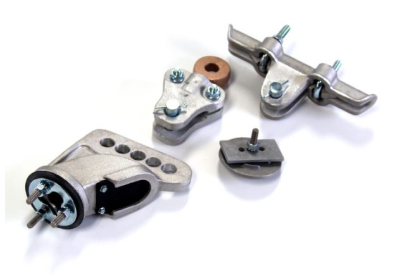

13-031 – Framework for 3 Section Head, No Tether
1-Way Span Wire Framework for 3 or 4 Section Head w/Tether
Includes 12-001 Clamp, 12-002 Balance Adjuster, 12-040 Weatherhead, 12-010 Closure Cap
ECSPN: 13031X

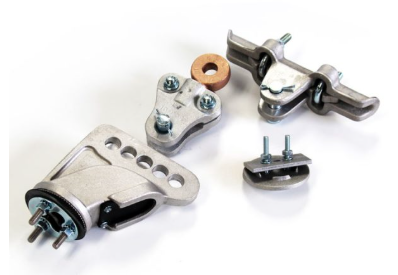

13-056 – Framework for 3 Section Head, W/ Tether

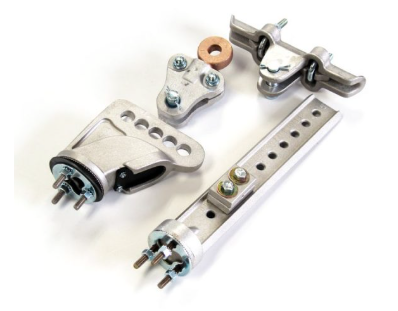

1-Way Span Wire Framework for 3 or 4 Section Head with Backplate & Tether
Includes 12-001 Clamp, 12-002 Balance Adjuster, 12-040 Weatherhead, 12-030T Tether
ECSPN: 13031B
13-057 – Framework for 3 or 4 Section Head w/Backplate & Tether
1-Way Span Wire Framework for 5-Section Head w/Tether
Includes 12-001 Clamp, 12-002 Balance Adjuster, 12-040 Weatherhead, 12-004 Tubular Spreader, 12-092 Spreader, 12-042 Coupling Kit
ECSPN: 15031X
13-056 – Framework for 3 Section Head, W/ Tether
Side Pole Mount

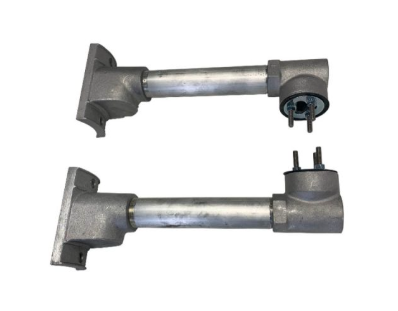

Pipe Arm Assembly-Pair
10-008 Pole Plate,
12-027 Tri-Stud Elbow
10″ Aluminium Nipple
ECSPN: 13029
13-029 – Pipe Arm Assembly Set
Pipe Arm Assembly-Pair
10-008 Pole Plate
12-027 Tri-Stud Elbow
10″ Aluminium Nipple
ECSPN: 13029-5

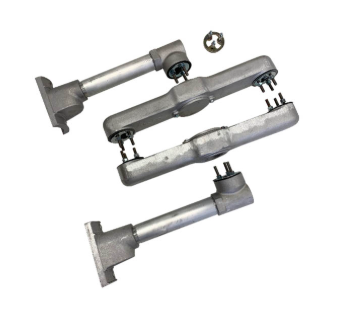

13-030 – Pipe Arm Assembly,
5 Section
